All the pictures used for correlation (reference picture and deformed picture) must be in bitmap format (*.bmp) with 8 bit grey levels and saved in the same folder.In the Icasoft main window, click on the Input Data button.

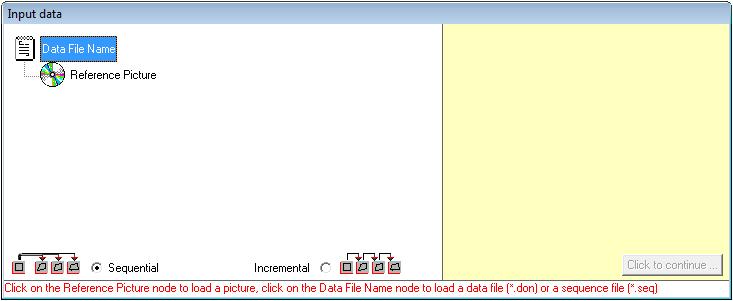

This will open the Input Data loading window. From this windows you will load the pictures you want correlated by Icasoft.
All the pictures used for correlation (reference picture and deformed picture) must be in bitmap format (*.bmp) with 8 bit grey levels and saved in the same folder.
To load the reference picture, click on
. A file window will be open and you will have to select your reference picture. Once you have chosen the reference picture, the deformed picture option will appear.
Click on
to load the deformed pictures to be correlated and click on the Open button.

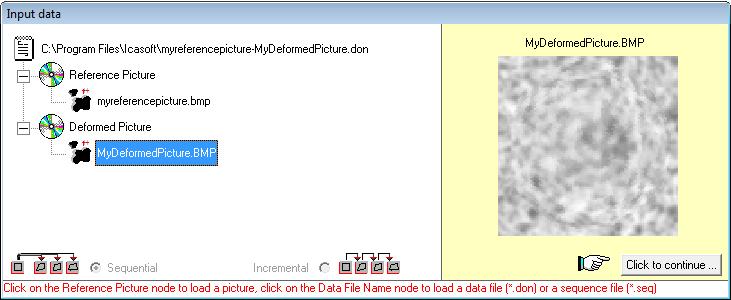

When the pictures are loaded you will have the following window :
You can preview a picture by single clicking it.
To finish the picture loading click on the button Click to continue.
If you want to load an existing file, click on
In the reading data file window, chose the data option in the bottom right hand corner and click on the file you want to open. Then click Open.

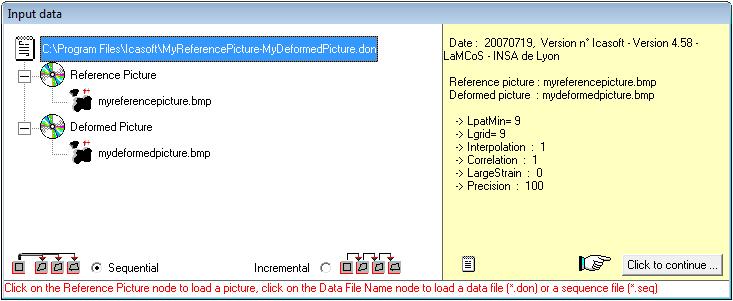

You will have a similar window :
On the right side of the window, is all the information about the input data file.
To finish the picture loading click on the Click to continue button.
